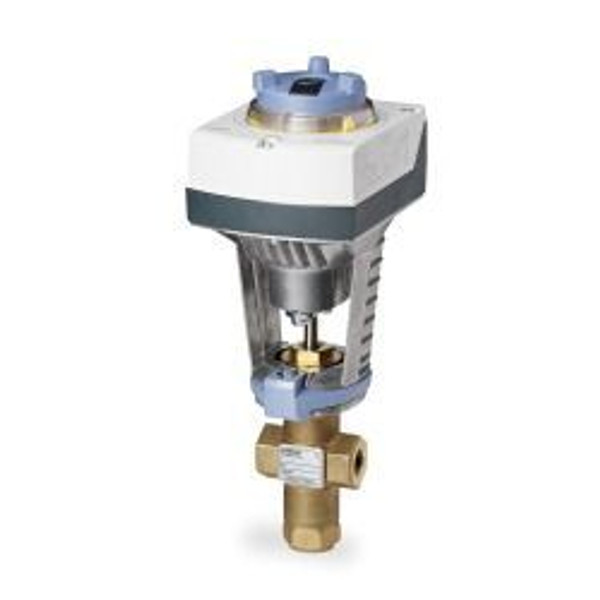

Siemens 373-03148, Valve Assembly: 3-Way, Mixing, 3/4-inch, 6.3 Cv, Equal Percentage/Linear, Stainless Steel Trim, FxF, Floating Control, Electronic Actuator, Non-Spring Return

$639.52
SKU:
373-03148
Availability:
Usually ships in 3 to 7 business days
Weight:
7.77 LBS
Shipping:
Calculated at Checkout
Siemens 373-03148, Valve Assembly: 3-Way, Mixing, 3/4-inch, 63 CV, Equal Percentage/Linear, Stainless Steel Trim, FxF, Floating Control, Electronic Actuator, Non-Spring Return

Product Overview

Siemens 373-03148, Valve Assembly: 3-Way, Mixing, 3/4-inch, 6.3 CV, Equal Percentage/Linear, stainless Steel Trim, Floating Control, Electronic Actuator, Non-Spring Return

Item Specifications

  • AssemblyY
  • Assembly Valve599-03148
  • Assembly ActuatorSAX81.03U
  • Valve Size0.75
  • Valve TypeGlobe
  • Valve Pattern3-Way Mixing
  • Valve CV/GPM6.3
  • Body Rating250
  • Rated Close-off250
  • Max Temp250
  • TrimSS
  • Actuator TypeNon-Spring Return
  • Fail-safe PositionN/A
  • Control Signal Type3-Position
  • Nominal Voltage24
  • NEMA Rating1
  • Aux Switches0
  • FeedbackN/A
  • Damper Actuator TorqueN/A
  • Scalable Control SignalN/A
  • Plenum RatingN/A
  • Damper Actuation ApplicationN/A
  • Cable LengthN/A
  • Damper Actuation StyleN/A
  • Pneumatic Connection
  • COOUS
  • EAN/UPCNone
  • Harmonized Tariff Code84818000
  • Embargo IndicatorEAR99
  • RohsUnDec
