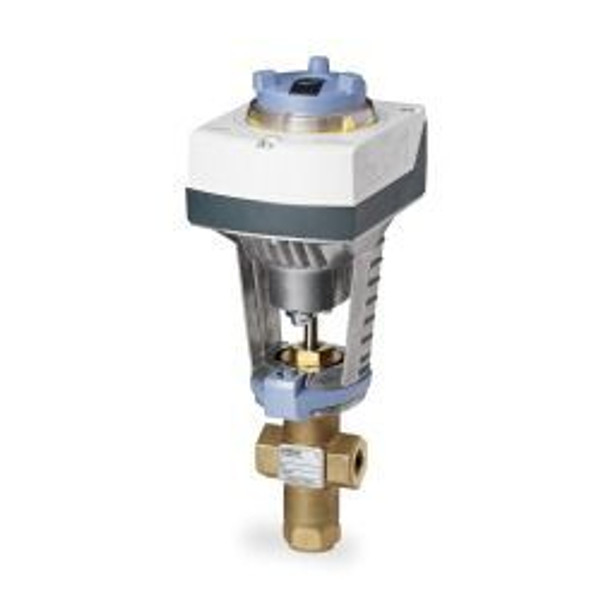

Siemens 371-03206, Valve Assembly: 3-Way, Mixing, 2-inch, 40 Cv, Equal Percentage/Linear, Brass Trim, FxF, Proportional Control, Electronic Actuator, Non-Spring Return

$835.63
SKU:
371-03206
Availability:
Usually ships in 3 to 7 business days
Weight:
16.25 LBS
Shipping:
Calculated at Checkout
Siemens 371-03206, Valve Assembly: 3-Way, Mixing, 2-inch, 40 CV, Equal Percentage/Linear, Brass Trim, FxF, Proportional Control, Electronic Actuator, Non-Spring Return

Product Overview

Siemens 371-03206, Valve Assembly: 3-Way, Mixing, 2-inch, 40 CV, Equal Percentage/Linear, Brass Trim, Proportional Control, Electronic Actuator, Non-Spring Return

Item Specifications

  • AssemblyY
  • Assembly Valve599-03206
  • Assembly ActuatorSAX61.03U
  • Valve Size2
  • Valve TypeGlobe
  • Valve Pattern3-Way Mixing
  • Valve CV/GPM40
  • Body Rating250
  • Rated Close-off35
  • Max Temp250
  • TrimBronze
  • Actuator TypeNon-Spring Return
  • Fail-safe PositionN/A
  • Control Signal Type0-10v, 4-20A
  • Nominal Voltage24
  • NEMA Rating1
  • Aux Switches0
  • Feedback0-10v
  • Damper Actuator TorqueN/A
  • Scalable Control SignalN/A
  • Plenum RatingN/A
  • Damper Actuation ApplicationN/A
  • Cable LengthN/A
  • Damper Actuation StyleN/A
  • Pneumatic Connection
  • COOUS
  • EAN/UPCNone
  • Harmonized Tariff Code84818000
  • Embargo IndicatorEAR99
  • RohsUnDec
