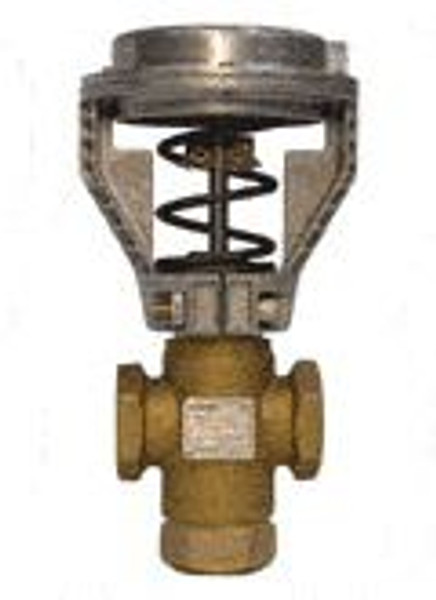

Siemens 268-03148, Valve Assembly: 3-Way, Mixing, 3/4-inch, 6.3 Cv, Equal Percentage/Linear, Stainless Steel Trim, FxF, 4-inch Pneumatic Actuator with 3-8 psi

$411.33
SKU:
268-03148
Availability:
Usually ships in 3 to 7 business days
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
Siemens 268-03148, Valve Assembly: 3-Way, Mixing, 3/4-inch, 63 CV, Equal Percentage/Linear, Stainless Steel Trim, FxF, 4-inch Pneumatic Actuator with 3-8 psi

Product Overview

Siemens 268-03148, Valve Assembly: 3-Way, Mixing, 3/4-inch, 6.3 CV, Equal Percentage/Linear, Stainless Steel Trim, FxF, 4-inch Pneumatic Actuator with 3-8 psi

Item Specifications

  • AssemblyY
  • Assembly Valve599-03148
  • Assembly Actuator599-01081
  • Valve Size0.75
  • Valve TypeGlobe
  • Valve Pattern3-Way Mixing
  • Valve Cv/GPM6.3
  • Body Rating250
  • Rated Close-off155
  • Max Temp250
  • TrimSS
  • Actuator TypeSpring Return
  • Fail-safe PositionN/A
  • Control Signal Type3-60psipsi
  • Nominal Voltage0
  • NEMA Rating1
  • Aux Switches0
  • FeedbackN/A
  • Damper Actuator TorqueN/A
  • Scalable Control SignalN/A
  • Plenum RatingN/A
  • Damper Actuation ApplicationN/A
  • Cable LengthN/A
  • Damper Actuation StyleN/A
  • Pneumatic Connection
  • COOUS
  • EAN/UPCNone
  • Harmonized Tariff Code848180035
  • Embargo IndicatorEAR99
  • RohsUnDec
