Product Overview

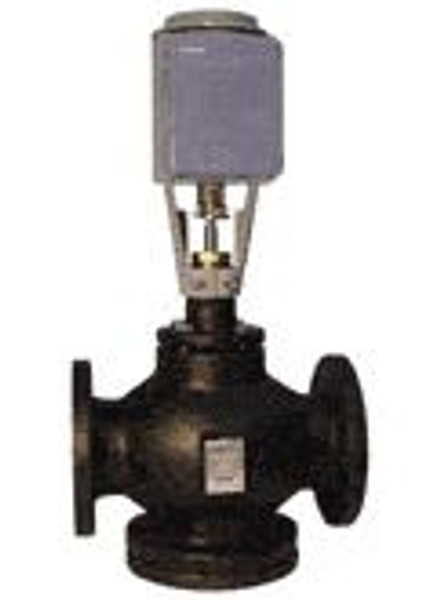

Siemens 267-06040, Valve Assembly: High Temp, 2-Way, NC, 2-1/2-inch, 63 CV, Linear, Stainless Steel Trim, Flanged, Proportional Control, Electro-Hydraulic Actuator, Non-Spring Return
Item Specifications
- AssemblyY
- Assembly Valve599-06040
- Assembly ActuatorSKD60U
- Valve Size2.5
- Valve TypeGlobe
- Valve Pattern2-Way
- Valve Cv/GPM63
- Body Rating125
- Rated Close-off38
- Max Temp250
- TrimSS
- Actuator TypeNon-Spring Return
- Fail-safe PositionN/A
- Control Signal Type0-10v, 4-20A
- Nominal Voltage24
- NEMA Rating1
- Aux Switches0
- Feedback0-10v, 4-20A
- Damper Actuator Torque
- Scalable Control Signal
- Plenum Rating
- Damper Actuation Application
- Cable Length
- Damper Actuation Style
- Pneumatic Connection
- COOUS
- EAN/UPCNone
- Harmonized Tariff Code9032810080/span>
- Embargo IndicatorEAR99
- RohsUnDec
