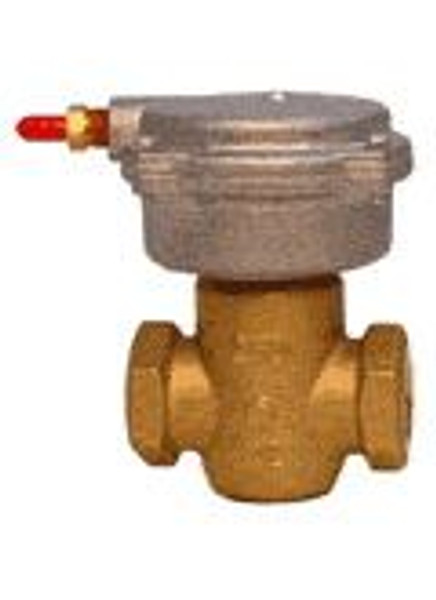

Siemens 258-02038C, Valve Assembly, ANSI 250, MT Series, 2-Way, NO, Modified Eq Pct, 1/2", FxF, 2.5 Cv, 8-13 psi SR, Pnu

$153.20
SKU:
258-02038C
Availability:
Usually ships in 3 to 7 business days
Weight:
1.70 LBS
Shipping:
Calculated at Checkout
Siemens 258-02038C, Valve Assembly, ANSI 250, MT Series, 2-Way, NO, Modified Eq Pct, 1/2", FxF, 25 CV, 8-13 psi SR, Pnu

Product Overview

Siemens 258-02038C, Valve Assembly, ANSI 250, MT Series, 2-Way, NO, Modified Eq Pct, 1/2, FxF, 2.5 CV, 8-13 psi SR, Pnu

Item Specifications

  • AssemblyY
  • Assembly Valve599-02038C
  • Assembly Actuator599-01088
  • Valve Size0.5
  • Valve TypeGlobe
  • Valve Pattern2-Way
  • Valve Cv/GPM2.5
  • Body Rating250
  • Rated Close-off25
  • Max Temp230
  • TrimBrass
  • Actuator TypeSpring Return
  • Fail-safe PositionNormally Open
  • Control Signal Type60psi-13psi
  • Nominal Voltage0
  • NEMA Rating1
  • Aux Switches0
  • FeedbackN/A
  • Damper Actuator TorqueN/A
  • Scalable Control SignalN/A
  • Plenum RatingN/A
  • Damper Actuation ApplicationN/A
  • Cable LengthN/A
  • Damper Actuation StyleN/A
  • Pneumatic Connection
  • COOUS
  • EAN/UPCNone
  • Harmonized Tariff Code848180035
  • Embargo IndicatorEAR99
  • RohsUnDec
