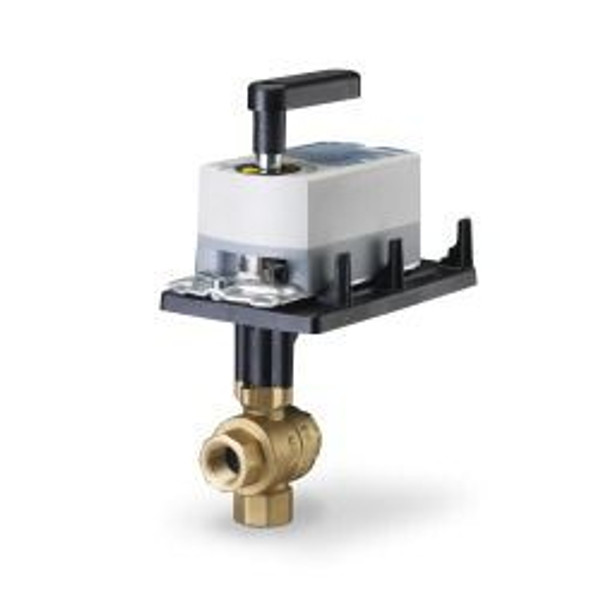

Siemens 171D-10367, 599 Series 3-way, 1-1/2", 25 Cv Ball Valve Coupled with Proportional (0-10V), Non-Spring Return Actuator.

$353.32
SKU:
171D-10367
Availability:
Usually ships in 3 to 7 business days
Weight:
1.40 LBS
Shipping:
Calculated at Checkout
Siemens 171D-10367, 599 Series 3-way, 1-1/2", 25 CV Ball Valve Coupled with Proportional (0-10V), Non-Spring Return Actuator

Product Overview

Siemens 171D-10367, 599 Series 3-way, 1-1/2, 25 Cv Ball Valve Coupled with Proportional (0-10V), Non-Spring Return Actuator.

Item Specifications

  • AssemblyY
  • Assembly Valve599-10367
  • Assembly ActuatorGLB161.1P
  • Valve Size1.5
  • Valve TypeBall
  • Valve Pattern3-Way Mixing or Diverting
  • Valve Cv/GPM25
  • Body Rating250
  • Rated Close-off200
  • Max Temp250
  • TrimPlated Brass
  • Actuator TypeNon-Spring Return
  • Fail-safe PositionN/A
  • Control Signal Type0-10v
  • Nominal Voltage24
  • NEMA Rating2
  • Aux Switches0
  • Feedback0-10v
  • Damper Actuator Torque44 lb-in
  • Scalable Control SignalN/A
  • Plenum RatingPlenum
  • Damper Actuation ApplicationControl Damper
  • Cable Length3 ft
  • Damper Actuation StyleRotary
  • Pneumatic Connection
  • COOUS
  • EAN/UPCNone
  • Harmonized Tariff Code9032810080/span>
  • Embargo IndicatorEAR99
  • RohsUnDec
