Islandaire EZ Series NR, PTAC (Thru The Wall Air Conditioner)



  Islandaire EZ Series NR is a replacement for the
Nesbitt Modular RoomMate. Our commercial duty
construction with heavy gauge galvanized steel
and superior components create an efficient reliable unit.
This design eliminates the need for any interior or
exterior renovation. Use of the existing wall sleeve-
cabinet and louver saves time and money, two very
important factors in today's competitive environment!



FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge Galvanized Steel
  • Designed for exact replacement of existing sleeve opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat, Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™ Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

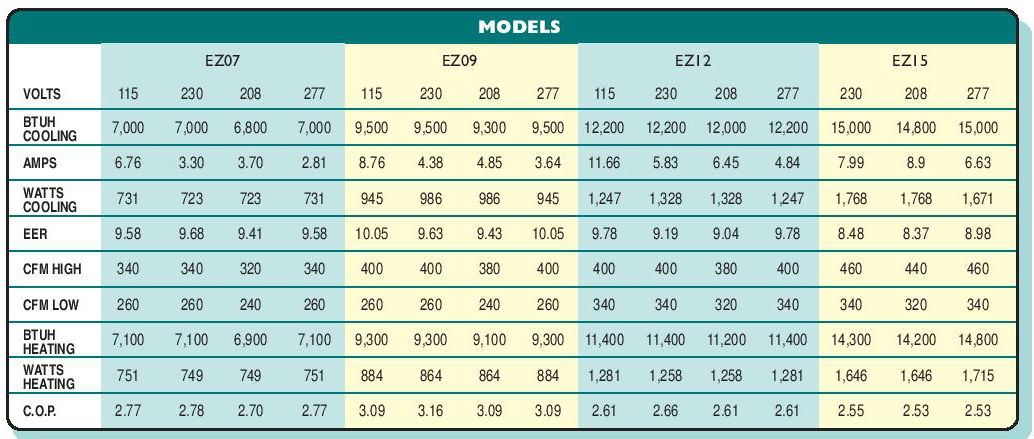

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^F WB outdoor and 70WF DB/60WF WB indoor. Wattage, Amperage, COP, EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95WF DB/75WF WB outdoor and 80WF DB/67WF WB indoor.

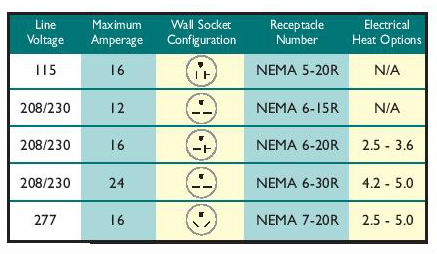

Heat and Line Voltage Options:

islandaire-ez-nr-heat.jpg islandaire-ez-nr-vol.jpg


(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
