Islandaire EZ Series HQ, PTAC (Thru The Wall Air Conditioner)

Islandaire EZ Series HQ is a replacement for the Heil Quaker models of SEA
and SHA units. Our commercial duty construction with heavy gauge galvanized
steel and superior components create an efficient reliable unit. This design
eliminates the need for any interior or exterior renovation. Use of the existing
wall sleeve-cabinet and louver saves time and money, two very important
factors in today's competitive environment!



FEATURES:

  • Proudly Made in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge
    Galvanized Steel
  • Designed for exact replacement of existing sleeve
    opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide
    Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric
    Heat, Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with State-of-the-Art Digital Intellitemp™
    Control System
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E

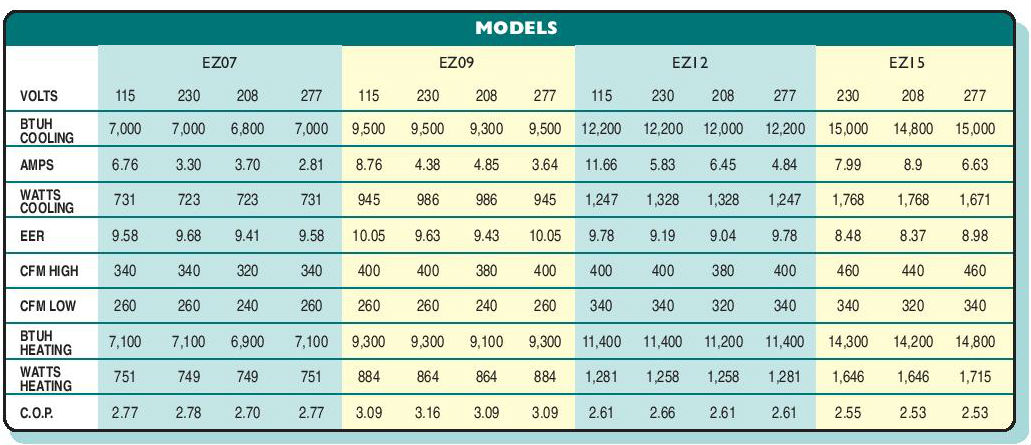

Heating capacities specified in accordance with ARI standard 380-82 at conditions of 47^F WB outdoor and 70^F DB/60^F WB indoor. Wattage, Amperage, COP EER listings include compressor, evaporator motor and condenser fan motor. Cooling capacities specified in accordance with ARI standard 380-82 at conditions of 95^F DB/75^F WB outdoor and 80^F DB/67^F WB indoor.

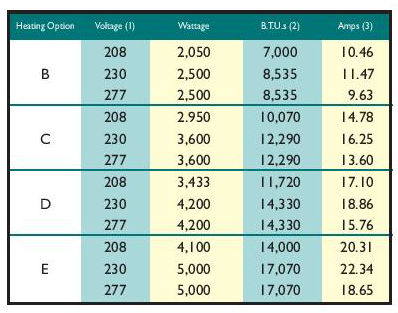

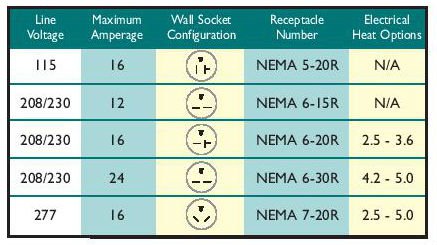

Heat and Line Voltage Options:

islandaire-ez-hq-heat.jpg islandaire-ez-hq-volt.jpg


(1) Voltage is Single Phase, Alternating Current and R.M.S. (2) Heating Capacity (B.T.U./Hr.) based on indoor blower motor and heating elements. (3) Amp values are a combination of indoor blower motor and heating elements.
