Amtrol: Buffer Tanks
Amtrol ASME Buffer Tanks add capacity to non-potable, closed systems to help reduce cycling, improve temperature control and provide more consistent system operation. Available for chilled water and hot water applications. All Amtrol Buffer Tanks are made in the USA at our ISO 9001:2008 registered facilities.
Amtrol Buffer Tanks Features
Chilled Water Buffer Tanks
- Internal Baffle Helps Properly Circulate Water.
- Available up to 1,040 Gallons.
- Connections from 3″ to 12″.
- Max. Working Pressure: 125 or 150 PSIG.
- Max. Operating Temperature: 450° F.
- Seismic Restraints, Sensor Ports and Grooved Pipe Connections Available.
Hot Water Buffer Tanks
- 2-Port Tanks Add System Mass.
- 4-Port Tanks Add System Mass and Hydraulic Separation.
- Available up to 300 Gallons.
- Connections: 2″, 3″ and 4″
- Max. Working Pressure: 125 or 150 PSIG.
- Max. Operating Temperature: 450° F.
- Seismic Restraints, Sensor Ports and Grooved Pipe Connections Available.
Amtrol Buffer Tanks Specifications
Construction
- Shell: ASME Approved Steel
- Flanges: ASME 150 lb.
- CWBT Series Connections: 3″, 4″, 6″, 8″, 10″, and 12″
- HWBT Series Connections: 2″, 3″ and 4″
- Finish: Red Oxide Primer
Performance
- Maximum Operating Temperature: 450° F (177° C)
- Maximum Working Pressure: 125 PSIG (8.6 bar) and 150 PSIG (10.3 bar)
- Warranty: 1-Year Limited
Application
- For chilled and hot water systems.
- Meets all ASME Section VIII, Division 1 code standards.

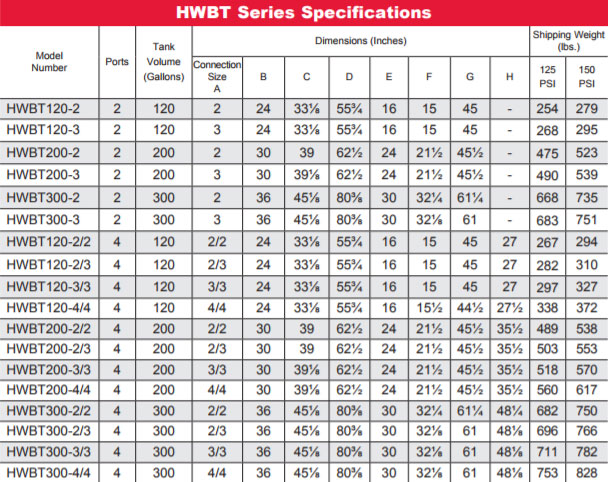

Amtrol Hot Water Buffer Tanks Specifications
Amtrol Chilled Water Buffer Tanks Specifications
Amtrol Buffer Tanks Manuals and Submittals
- Chilled Water Buffer Tank-125 PSIG Submittal
- Chilled Water Buffer Tank-150 PSIG Submittal
- 2-Port Hot Water Buffer Tank-125 PSIG Submittal
- 2-Port Hot Water Buffer Tank-150 PSIG Submittal
- 4-Port Hot Water Buffer Tank-125 PSIG Submittal
- 4-Port Hot Water Buffer Tank-150 PSIG Submittal
- Chilled Water Buffer Installation and Operation Instructions
- Hot Water Buffer Installation and Operation Instructions
