Product Overview

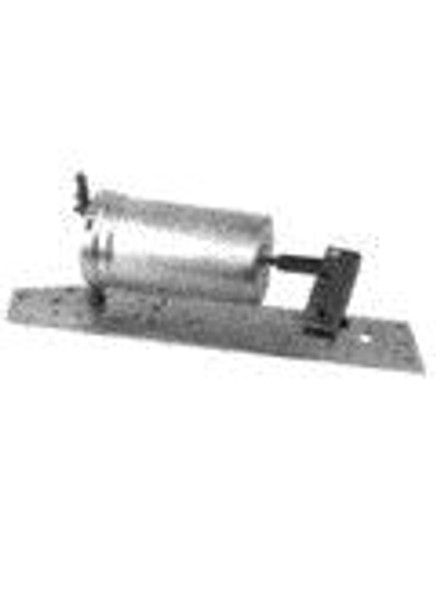

Siemens 332-2973, Pneumatic Air Actuator, NO.4 PNEU ACT,8-13PSI,U-M,W/P-R
This 331Number 4 Pneumatic Damper Actuator with integral pivot and pivot post is a rugged, metal-fabricated device that provides gradual or positive actuation of HVAC and fire/smoke dampers. This actuator has a nominal spring range of 8 to 13 psi, a replaceable diaphragm and an air connection of 1/8 NPT female with a dual barb elbow fitting for 1/4 OD tubing. Also included is an universal mounting kit that allows fixed or pivot mounting, this kit contains a positioning relay and parts for frame mounting.
This 331Number 4 Pneumatic Damper Actuator with integral pivot and pivot post is a rugged, metal-fabricated device that provides gradual or positive actuation of HVAC and fire/smoke dampers. This actuator has a nominal spring range of 8 to 13 psi, a replaceable diaphragm and an air connection of 1/8 NPT female with a dual barb elbow fitting for 1/4 OD tubing. Also included is an universal mounting kit that allows fixed or pivot mounting, this kit contains a positioning relay and parts for frame mounting.
Item Specifications
- AssemblyN
- Assembly ValveN/A
- Assembly ActuatorN/A
- Valve SizeN/A
- Valve TypeN/A
- Valve PatternN/A
- Valve Cv/GPMN/A
- Body RatingN/A
- Rated Close-offN/A
- Max TempN/A
- TrimN/A
- Actuator TypeN/A
- Fail-safe PositionN/A
- Control Signal Type3-8 PSI
- Nominal VoltageN/A
- NEMA Rating
- Aux SwitchesN/A
- FeedbackN/A
- Damper Actuator TorqueN/A
- Scalable Control SignalN/A
- Plenum Rating
- Damper Actuation ApplicationControl Damper
- Cable LengthN/A
- Damper Actuation Style
- Pneumatic Connection
- COOUS
- EAN/UPCNone
- Harmonized Tariff Code8483405010
- Embargo IndicatorEAR99
- RohsUnDec
