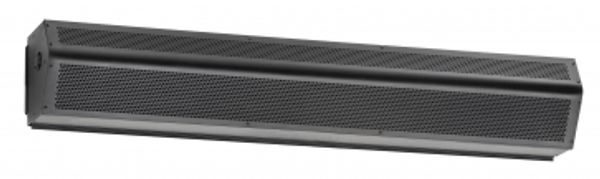

Mars Air Curtain LPN2144-2UA-OB Overview
Our LoPro LPN2 model shares the same sleek, consumer-friendly design the rest of the LoPro series features, only it is ETL Sanitation Certified for foodservice applications. It has a 1/6 HP motor and is sanitation certified for heights up to 7'. The standard color is Obsidian Black.Product Features of LPN2144-2UA-OB
- Aesthetically Pleasing "Low Profile" 8" Design
- Certifications
- Corrosion Resistant Powder Coated Finish
- Durable Metal Construction
- Durable metal design
- Easy install mounting plate
- Easy To Install
- Flying-insects Protection: 7'
- Freight included
- Low Maintenance
- Low-profile metal design
- Made in USA
- Sleek metal design
- 1/6 hp direct-drive motor
LPN2144-2UA-OB Specifications
- Voltage: 115V
- FLA (Ampacity): 5.2Amps
- Door Width (Inches): 144
- Door Height: 7'
- Number of Poles: 1
- Max Volume: 3600
- Max Velocity 1800
- Frequency (Hertz): 60
- # of Motors: 2
- Sound dBA: 54
- Weight (lbs): 122
- Color: Obsidian Black
LPN2144-2UA-OB Accessories
DOOR SWITCHES
Automatic on/off control of air curtain as door is opened and closed
Line Voltage
- 99-014 Door Limit Switch - Combination roller and plunger - 20 amps, 250v, or 1 hp max.
24-Volt Control
- 99-018 Commercial Magnetic Reed Switch Only - Plastic | Surface-mounted | NOTE: Used with control packages J0023 or J0024 for double doors
CONTROL PACKAGES
Combination packages of door switches, controllers, time delays, and thermostats
Line Voltage
- J0043 Door Limit Switch with Adjustable Time Delay. 1 sec. - 10 min. | Surface-mounted
- J0044 Door Limit Switch with Adjustable Time Delay and Analog Thermostat. 1 sec. - 10 min |Surface-mounted switch, remote-mounted thermostat
- 99-063 Analog Thermostat - Remote-mounted
- 99-064 Analog Thermostat DPST - Double pole, single throw | Acts as heat on demand Remote-mounted
24-Volt Control
- J0021 Commercial Magnetic Reed Switch with Controller and Adjustable Time Delay | 115v - 6 sec. - 20 min. | Plastic | Surface-mounted
- J0022 Commercial Magnetic Reed Switch with Adjustable Time Delay |208-230v 1? - 6 sec. - 20 min. | Plastic | Surface-mounted
- J0023 Commercial Magnetic Reed Switch with Controller | 115v - Plastic | Surface-mounted
- J0024 Commercial Magnetic Reed Switch with Controller | 208-230v 1? - Plastic | Surface-mounted
- J0028 Door Limit Switch with Controller and Adjustable Time Delay |115v - 6 sec. - 20 min. | Surface-mounted
- J0029 Door Limit switch with Controller and Adjustable Time Delay |208-230v 1? - 6 sec. - 20 min. | Surface-mounted
- J0046 Commercial Magnetic Reed Switch with Internal Transformer |208-230v 1? and 3? - Plastic | Surface-mounted
- J0047 Commercial Magnetic Reed Switch with Internal Transformer |460v 3? - Plastic | Surface-mounted
- J0049 Commercial Magnetic Reed Switch with Adjustable Time Delay and Analog Thermostat | 208-230v 1? and 3? - 1 sec. - 17 min. | Plastic | Surface-mounted switch, remote-mounted thermostat
- J0050 Commercial Magnetic Reed Switch with Adjustable Time Delay and Analog Thermostat | 460v 3? - 1 sec. - 17 min. | Plastic | Surface-mounted switch, remote-mounted thermostat
- J0051 Commercial Magnetic Reed Switch with Adjustable Time Delay |208-230v 1? and 3? - 1 sec. - 17 min. | Plastic | Surface-mounted
- J0052 Commercial Magnetic Reed Switch with Adjustable Time Delay |460v 3? - 1 sec. - 17 min. | Plastic | Surface-mounted
MOUNTING BRACKETS
Recommended for specific applications | Standard color: Obsidian Black | NOTE: Units come standard with predrilled holes on back end for flush mounting
- J0041 Transom Mounting Brackets - For glass-frame doors | Set of 2 | Standard color Obsidian Black
- J0120 Tandem Mounting Kit - Used when multiple units are mounted side-by-side | Standard color Obsidian Black
- J0121 Tandem Mounting Kit - Used when multiple units are mounted side-by-side | Standard color Obsidian Black
- J0032 Walk-In Installation Kit | 115v - Includes: Magnetic reed switch | Controller | Nylon bolt
- J0033 Walk-In Installation Kit | 208-230v 1? - Includes: Magnetic reed switch | Controller | Nylon bolt
FILTERS
- LP2-FILTER-[size] LP2 Aluminum Mesh Filter 1/4' - Internal-mount | Set of 2 | [size]: Specify size in inches
LPN2144-2UA-OB Electrical Drawing
